Application of Ceramic Bead Sand in Resin Self-hardening Sand
Application of Ceramic Bead Sand in Resin Self-hardening Sand
Application of Ceramic Bead Sand in Resin Self-hardening Sand

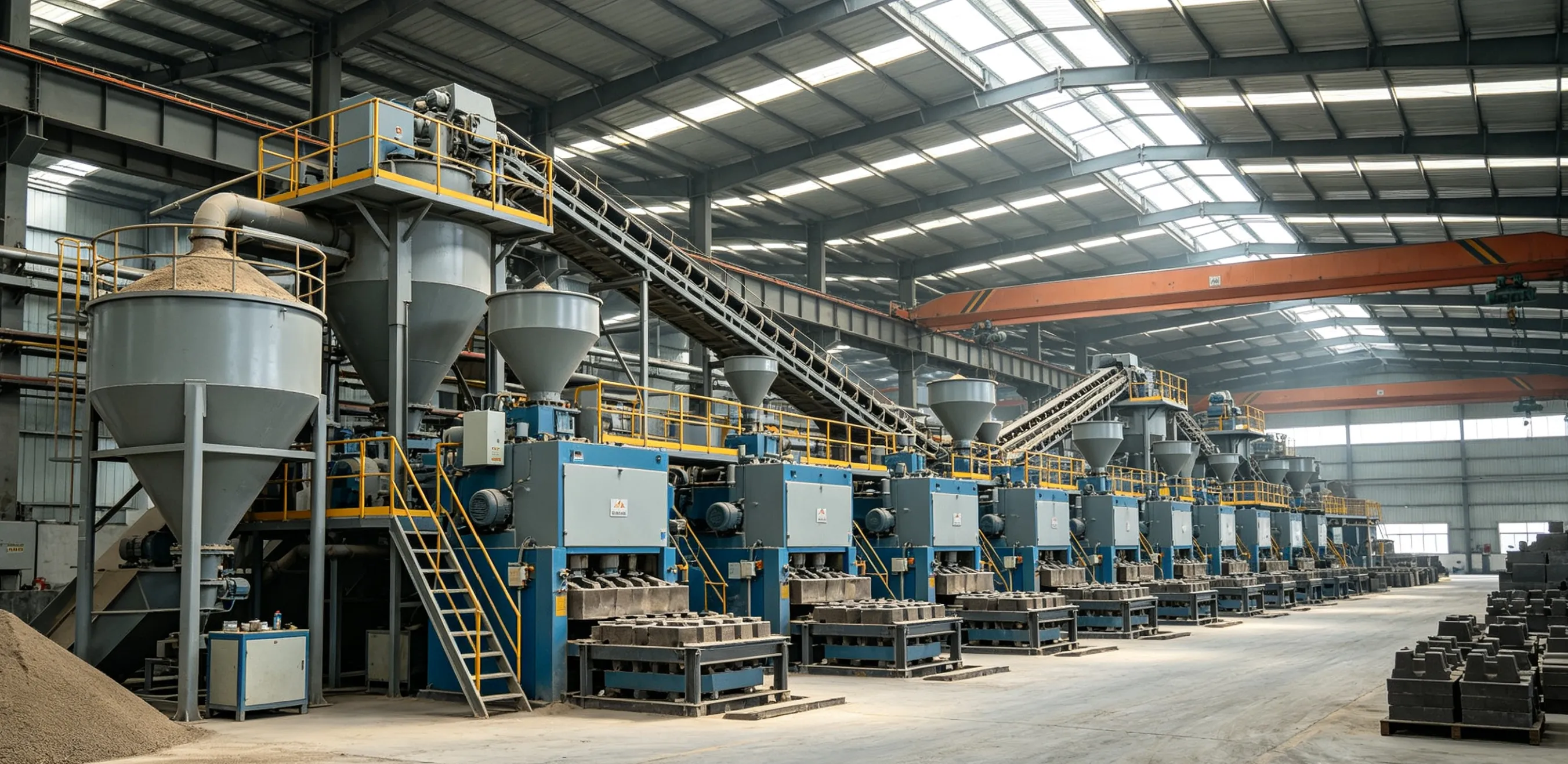

1. Overview
Resin self-hardening sand covers three mainstream systems: furan acid self-hardening sand, alkaline phenolic self-hardening sand and PEP-set phenolic urethane self-hardening sand. It is widely used for single-piece and small-to-medium batch production of steel, stainless steel, high-grade ductile iron and gray iron castings. Traditional quartz silica sand has drawbacks such as high thermal expansion, high resin consumption and severe breakage during reclamation, which easily causes casting defects including veining, metal penetration and blowholes.Ceramic bead sand is spherical artificial refractory sand made of high-alumina bauxite through high-temperature melting, jet granulation and classified screening. It features refractoriness ≥1800°C, thermal expansion coefficient only 1/5 of quartz sand, and angularity coefficient ≤1.1. It perfectly matches all resin self-hardening sand processes, simultaneously improving casting quality, cutting consumable costs and boosting environmental reclamation benefits.
2. Core Performance Advantages of Ceramic Bead Sand for Resin Self-hardening Sand
2.1 Spherical Shape Greatly Reduces Consumption of Resin Binder
Ceramic bead sand particles are nearly perfectly spherical with smooth surfaces and no sharp edges, resulting in a far smaller specific surface area than angular quartz sand. To achieve the same molding sand strength, resin dosage can be reduced by 30%~40%:
- Furan resin self-hardening sand: resin addition amount only 0.6%~0.8% (1.2%~1.5% for common silica sand);
- Alkaline phenolic / PEP-set resin: total resin addition controlled within 0.75%.
Lower resin dosage directly reduces total gas evolution of molding sand, fundamentally minimizing subsurface blowholes and pouring flash defects of castings. Meanwhile, consumption of high-priced resin consumables is greatly cut, significantly lowering molding material cost per casting.
2.2 Low Thermal Expansion Eliminates Veining and Hot Tearing Defects
Quartz sand undergoes crystal phase transformation during high-temperature pouring, with a thermal expansion rate as high as 1.5%. The surface of sand molds is prone to cracking, and molten metal penetrates cracks to form veining defects. Castings with thick hot spots also tend to develop hot tearing due to expansion stress of sand molds.The thermal expansion rate of ceramic bead sand at 1000°C is only 0.13% without phase transformation expansion, delivering excellent dimensional stability of sand molds under high temperature. Besides, the resin between spherical particles forms point contact, providing outstanding high-temperature deformability to effectively relieve shrinkage resistance of castings. The rejection rate of hot tearing for steel and stainless steel castings drops sharply.
2.3 Ultra-high Refractoriness Prevents Metal Penetration, Replaces Chromite Facing Sand
Ceramic bead sand mainly consists of mullite and corundum, with a refractoriness exceeding 1800°C and strong chemical inertness at high temperatures. It will not generate interfacial reactions with molten steel or iron.For areas prone to metal penetration such as thick surfaces of steel castings, riser roots and thin-walled complex sand cores, single ceramic bead sand can achieve the same anti-metal penetration and chilling effect as chromite sand. No extra chromite facing sand is required, simplifying molding procedures and eliminating investment in high-cost chromite sand.
2.4 High Strength & Low Breakage, Reclamation Recovery Rate of Used Sand up to 98%
Ceramic bead sand boasts high Mohs hardness, leading to extremely low particle breakage rate in the whole process of sand mixing, molding, shakeout and friction reclamation. In contrast, the sharp edges of quartz sand wear and pulverize easily, and fine powder greatly reduces the strength of reclaimed sand.When the reclamation system for ceramic bead resin self-hardening sand is adopted, the reclamation rate of used sand remains stable at 96%~98%, with LOI as low as 0.6%. Discharge of waste sand is drastically reduced, complying with environmental emission control policies for foundries and lowering solid waste disposal costs.
2.5 Excellent Flowability & Filling Performance Suitable for Complex Precision Castings
Spherical ceramic bead sand features low flow resistance, and the prepared molding sand delivers outstanding filling capacity. It can fully fill narrow, thin-walled complex sand cores (engine cylinder water jackets, valve inner cavities, hydraulic valve bodies, etc.), forming sand cores with higher compactness. The surface finish of casting inner cavities is improved, greatly reducing subsequent grinding and cleaning man-hours.
3. Process Parameters of Ceramic Bead Sand for Different Resin Self-hardening Sand Systems
3.1 Furan Acid Self-hardening Sand (Universal for Steel, Ductile Iron & Gray Iron)
- Particle size selection: AFS about 40 (40/70 mesh) for ordinary iron castings; wide-distribution particle size of 50/100 mesh for thick-section steel and stainless steel castings.
- Reference mixing ratio: 100% ceramic bead sand, 0.6%~0.8% furan resin, curing agent dosage accounts for 25%~40% of resin weight.
- Performance features: Fast curing speed, 24h tensile strength over 53% higher than silica sand with the same mixing ratio, short pattern drawing time to boost molding efficiency.
3.2 Alkaline Phenolic Resin Self-hardening Sand (Special for Stainless Steel & High-alloy Steel)
- Particle size selection: Prioritize wide-distribution multi-sieve grading (4/5 sieves), recommended fine-grained ceramic bead sand of AFS 50~70.
Note: Single coarse spherical ceramic bead sand easily causes molding sand creep and insufficient green strength if used with the same particle size as silica sand. Fine-grained wide grading can solve this problem.
- Reference mixing ratio: 100% ceramic bead sand, 0.7%~0.8% phenolic resin, matched special organic ester curing agent.
- Application scenarios: High-standard stainless steel valves, pumps and heat-resistant steel castings; nitrogen-free system avoids casting blowhole defects.
3.3 PEP-set Phenolic Urethane Resin Self-hardening Sand (High-end Precision Steel Castings)
- Particle size selection: Wide-screen sand of 40/100 mesh.
- Reference mixing ratio: Component A and B resin each 0.35%~0.4%, total resin amount ≤0.8%.
- Advantages: Compressive strength of ceramic bead molding sand is over 40% higher than silica sand. Curing is not affected by ambient temperature and humidity, suitable for mass production of high-precision castings with complex structures.
4. Key Practical Production Application Points
- Particle size grading controlSingle coarse sand is strictly prohibited for alkaline phenolic systems. Single-sieve sand of 40/70 mesh can be used for ordinary iron castings in furan systems, while wide multi-sieve distribution is preferred for steel castings to improve compactness and strength of molding sand.
- Optimization of facing & backing sand processFor large steel castings, ceramic bead sand can be adopted as facing sand and reclaimed ceramic bead sand as backing sand to further reduce consumption of new ceramic bead sand and balance production cost and casting quality.
- Matching reclamation systemFriction type high-efficiency reclamation equipment is recommended. Ceramic bead sand features low breakage rate with stable performance of reclaimed sand, and supplementary new sand amount is only 1/3 of that in silica sand process.
- Matching coatingBefore pouring steel and stainless steel castings, matched special refractory shielding coating shall be applied to further improve casting surface finish and completely eliminate chemical metal penetration.
5. Summary of Comprehensive Benefits in Practical Application
- Quality benefit: Four common casting defects including veining, hot tearing, metal penetration and blowholes are eliminated. Dimensional accuracy and surface finish of castings are greatly improved, with rejection rate reduced by more than 60%.
- Cost benefit: Resin consumables are saved by 30%~40%, no chromite sand is required, reclamation utilization rate of used sand exceeds 95%, and comprehensive molding material cost per ton of castings drops by 15%~30%.
- Production benefit: Molding sand with good flowability reduces forming difficulty of complex sand cores; fast curing shortens pattern drawing cycle and boosts molding capacity of workshops.
- Environmental benefit: Waste sand discharge is drastically cut. Lower total resin addition synchronously reduces flue gas volatilization during pouring, improving workshop operating environment and meeting environmental control requirements.
6. Applicable Industries & Casting Range
- Steel casting industry: Carbon steel, alloy steel, stainless steel valves, pumps, hydraulic parts and construction machinery steel castings.
- Iron casting industry: High-grade ductile iron, alloy gray iron engine cylinder blocks, cylinder heads and rail transit castings.
- Precision casting: Thin-walled complex inner cavity castings, hydraulic valve bodies with high dimensional accuracy and mold steel castings.
